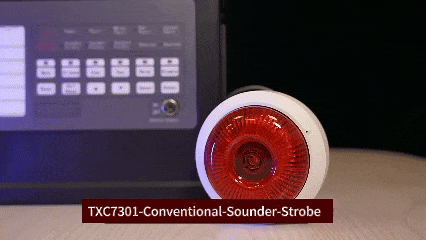

Overview: TXC7301 Conventional Sounder Strobe
TXC7301 Conventional Sounder Strobe is a non-coding sound and light alarm device installed in the field. When the sound and light alarm is activated, it sends out a strong sound and light alarm signal to remind the on-site personnel to pay attention. This product has a compact design, easy installation, and reliable use. It is suitable for hotels, restaurants, computer rooms, banks, shopping malls, warehouses, museums, libraries, office buildings and other places.
Menu
Feature and Benefits
•Non polarized 2-wire conventional sounder strobe
•Strobe with high intensity LED cluster
•Low power consumption
•Long lifespan
•Compatible with all conventional control panels
•Non-coding
Technical Specification
Operating Voltage: 24VDC (Range: 15~28VDC)
Starting Current: <10.0mA
Sound Pressure Level: After starting, the sound changed from small, to large, 3 to 5 seconds, 3 meters ahead 75-105dB
Flashing Frequency: 1.0~1.8Hz
Sound Pulsing Frequency: 2.5S~4.5S
Temperature: -10℃~55℃
Humidity: ≤95% Non condensing
Dimension: 100 x 44mm (with base)
Material & Color: Plastic, Red & White
Weight: 108g (with base)
TXC7 Serials Conventional Fire Alarm Panels
A Fire Alarm System is powerful that not only requires a core control panel like the TXC7 conventional fire alarm panel which was designed according to EN54-2 standard, but also needs to be paired with other detectors, modules, and appropriate configurations based on the project’s scale to maximize its effectiveness.
