Overview: TX7300 Addressable Sounder Strobe

TX7300 Addressable Sounder Strobe sends fire alarm signals to the alarm area in the form of sound and light. It is the most commonly used alarm device on site. Applicable places: floor staircases, fire elevator antechambers, evacuation passages, etc.

Feature and Beneﬁts

•EN54-3:2001 + A1:2002 + A2:2006 Certiﬁed/ LPCB Approved
•Built-in MCU processor and digital addressing
•17 tones Programmable sound output
•Programmable types such as Sounder-Strobe, Sounder or Strobe only
•Programmable Evacuate or Pre-alarm/Evacuate signal
•Low and normal consumption mode
•One or Two addresses mode
•10 Highlights LED status cluster
•Onsite Adjustable Parameters
•Loop or external power input
•Ceiling or wall mount installation

Technical Speciﬁcation

Approvals: LPCB / CE-CPR
Input Voltage: Loop Power: 24VDC [18V to 27.5V], External PSU: 24 VDC [20V to 27.5V]
Typical Current: Loop Standby: 0.6mA, Alarm: 1.5mA [Loop and External PSU], External PSU Standby: 0.6mA, Alarm:15mA
Saving Current: Standby: 1.2mA, Alarm: 9mA[Loop powered]
Protocol/Addressing: T&A, Value range from 1 to 254
Single Address: Evacuate Tone
Dual Address: 1st Alert Tone / 2nd Evacuate tone
Sound Level Pressure: 102 dB(A) at 1 meter/ tone 14
Strobe Light: 10 Highlights LED
Material / Color: ABS / RED Glossy ﬁnishing
Dimension / Height: Diameter 110 mm / 39.6mm (with Base)
Weight: 176g (with Base), 110g (Without Base)
Class: Type A, Indoors ,
Operating Temperature: -10℃ to+50℃
Ingress Protection Rating: IP21
Humidity: 0 to 95% RH, Non condensing

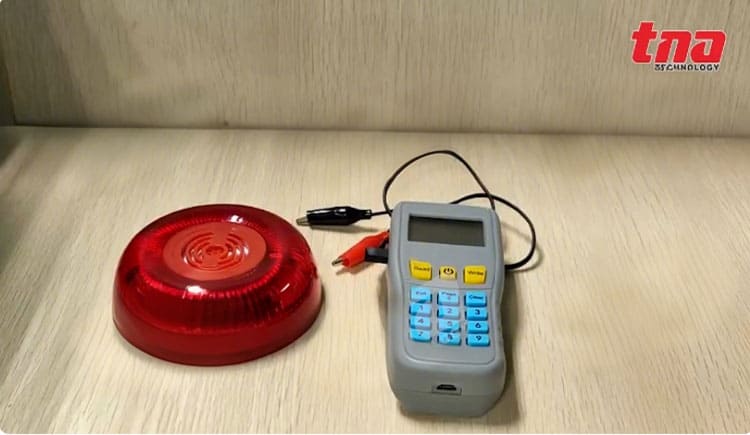

How to Program Addressable Sounder Strobe

This video will guide you through the coding process of our addressable sound and light fire alarm. Coding is an essential step to ensure seamless integration with your fire alarm system.

Remember, each sound and light fire alarm must have a unique address within the system to function correctly. If you encounter any issues during the coding process, refer to the product manual or contact our technical support team for assistance.

Now, let’s start the coding process in the following video.
