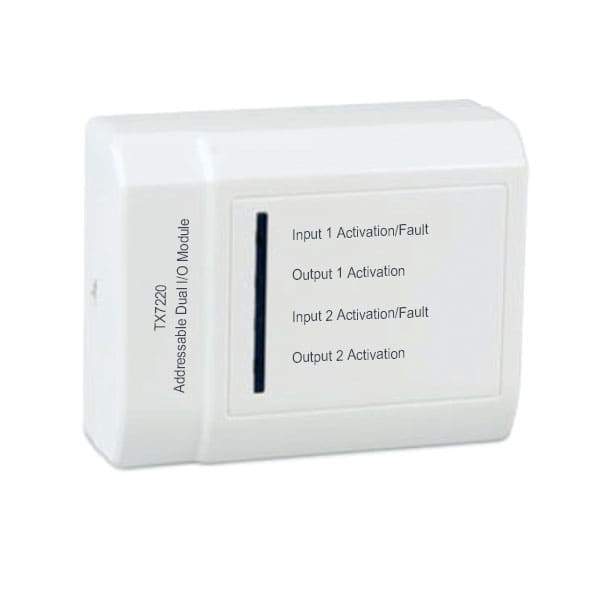

Overview: TX7220 Addressable Dual Input-output Module
TX7220 Addressable Dual Input-output Module is used to control the activation of on-site passive fire-fighting equipment and feed back the equipment’s action signal to the alarm controller.
Common passive fire-fighting equipment includes fire-proof rolling shutters and electric door closers.
Menu
Feature and Benefits
•EN54-18 Compliance
•Built-in MCU processor and digital addressing
•Two circuits 24VDC/2A Output relay contact and Control module or
two circuits Input Fire or Supervisory signal configuration
•LED status indicator
•Onsite Adjustable Parameter
•Loop powered or external power supply
•Surface mounting with fix base for simple installation
Technical Specification
Input Voltage: 24VDC [16V to 28V], External PSU:20 to 28VDC
Current Consumption: Loop Standby: 0.6mA, Alarm: 2.6mA, External PSU Standby: 0.6mA, Alarm: 45mA
Control output voltage: 24VDC / 2A rating (per circuit)
Input Relay: Normally Open dry contact
Input Resistance: 5.1Kohms/¼W(per circuit)
Protocol/Addressing: T&A,Value range from 1 to 254
Indicator Status: Normal:Single blink/Active, Steady/Fault:Double Blink
Material/Color: ABS/White Glossy finishing
Dimension/LWH: 108 x 86 x 38mm
Weight: 182g(with base),100g(without base)
Operating Temperature: -10℃-+50℃
Ingress Protection Rating: IP30
Humidity: 0 to 95℃ RH, Non condensing
TX7 Serials Addressable Fire Alarm Panels
A Fire Alarm System is powerful that not only requires a core control panel like the LPCB CE certified TX7004 FACP (Fire Alarm Control Panel), but also needs to be paired with other detectors, modules, and appropriate configurations based on the project’s scale to maximize its effectiveness.
