TX7201 Addressable Zone Monitor Module
40+ years
Experience
400+ Patents
Full sets LPCB
1,000,000+
projects worldwide
Global on site
after sale service
7x24h
response service

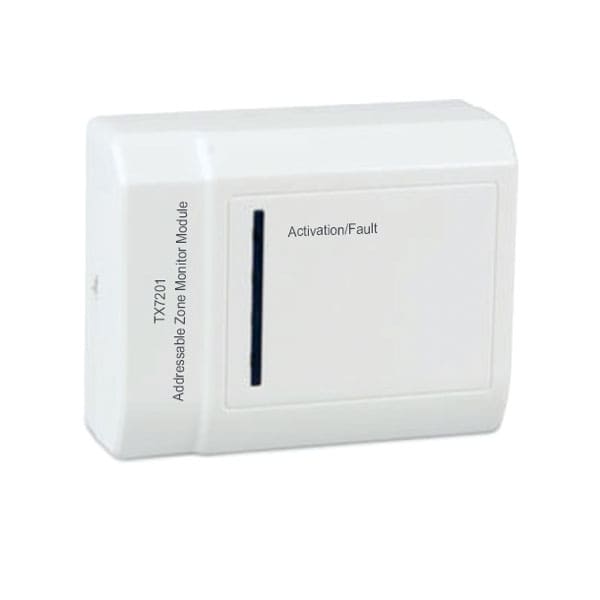

Overview: TX7201 Addressable Zone Monitor Module
The function of TX7201 Addressable Zone Monitor Module is to monitor traditional or non-coded fire detectors, including smoke detectors, heat detectors, infrared detectors, ultraviolet detectors, linear beam detectors
Menu
Feature and Benefits
•EN54-18：2005/AC2007
•Built-in MCU processor and digital addressing
•Intelligent self-diagnosis of open circuit
•Enhanced capacity of interference resistance by using multilevel
wave filtering process
•LED status indicator
•Onsite Adjustable Parameter
•Parallel connecting up to 16 conventional detectors
•Unit mounting with fix base for simple installation
Technical Specification
Input Voltage: Loop Power: 24VDC [16V to 28V], External PSU: 20 to 28VDC
Current Consumption: Loop Standby: 1.3mA, Alarm: 5mA, External PSU Standby: 10mA, Alarm: 60mA
Control output voltage: 24VDC (Only for the use of TX7130, do not allow the short circuit)
End of line Resistance: 5.1Kohms/ ¼ W
Protocol/Addressing: T&A, Value range from 1 to254
Indicator Status: Normal: Single blink/Active: Steady/Fault: Double Blink
Material / Color: ABS / White Glossy finishing
Dimension / LWH: 108 x 86 x38 mm
Weight: 154g (with Base), 83g (without Base)
Ingress Protection Rating: IP30
Humidity: 0 to 95%RH,Non condensing
TX7 Serials Addressable Fire Alarm Panels
A Fire Alarm System is powerful that not only requires a core control panel like the LPCB CE certified TX7004 FACP (Fire Alarm Control Panel), but also needs to be paired with other detectors, modules, and appropriate configurations based on the project’s scale to maximize its effectiveness.
