Define: What Is Smoke Detector?
Smoke detectors are a crucial component of early fire warning systems, primarily providing early warning of smoke buildup during the initial stages of a fire. There are different kinds of smoke detectors based on their connection method, they can be categorized as addressable smoke detectors, addressable smoke detectors, optical smoke detector and wireless smoke detectors. While different systems cannot be interconnected, multiple linkable smoke detectors can be connected within the same system. This article focuses on programmable smoke detectors. For information on other types, please click the blue text above.
TXC7101 Conventional Smoke Detector
what is conventional smoke detector?
Unlike programmable smoke detectors, conventional smoke detectors lack a unique address and cannot be individually identified by a central control panel.
Instead, they only indicate the approximate alarm area by the circuit or line they are located in. When an alarm is triggered, only the approximate area (e.g., “3rd floor east circuit alarm”) is known. Manual inspection is required to pinpoint the specific fire source, potentially delaying emergency response.
However, their most obvious benefit is the low initial investment cost, making them suitable for smaller locations.
Feature and Benefits
•Low power consumption, user friendly
•High reliability by auto drift compensation
•Enhanced capacity of interference resistance by multi-level
wave filtering process
•Fully sealed PCB board
Technical Specification
Operating Voltage: DC24V±20%
Operating Current: Monitoring: ≤ 0.15mA, Alarm: 20mA±4mA
Indicator: Monitoring: Red, flashes periodically, Alarming: Red, always on, Mal-function: off or flashes irregularly
Operating Environment: -10℃~+50℃
Relative Humidity: ≤95% Non condensing
Color: White
Weight: 100g (including base)
TXC7101 smoke detector lighting rules
The smoke detector only senses and signals smoke and does not have audible or visual alarms. In different situations, the indicator light provides visual signals, as summarized below:

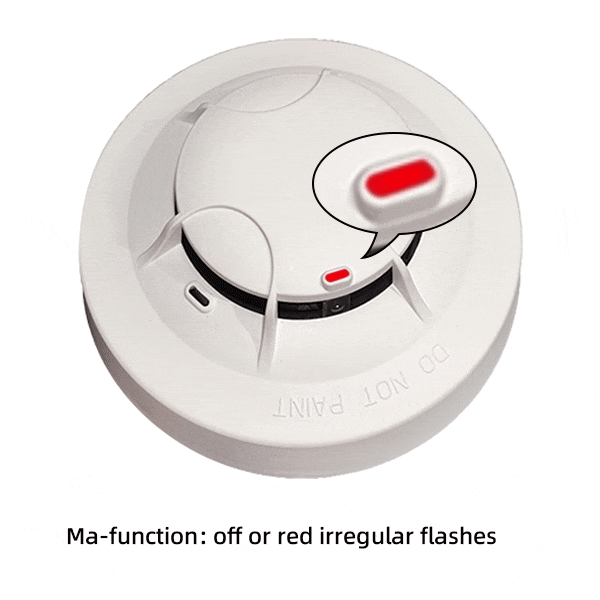

Monitoring: Red, flashes periodically; Alarm: Red, stays on; Ma-function: off or red irregular flashes
The light flashing frequency depends on the circuit capacity and is not a fixed value. The light flashing frequencies in the figure below are for reference only.
Addressable Smoke Detector VS Conventional Smoke Detector
| Features | Addressable Smoke Detectors | Conventional Smoke Detector |
| Location Accuracy | Device-level location (e.g., "5F-103 smoke detector") | Zone-specific location (e.g., "Zone B alarm") |
| Fault Diagnosis | Real-time reporting of contamination levels, short circuits, and open circuits. | Loop continuity detection only. |
| Wiring Options | Single-circuit bus (supports ≤ 256 devices) | Multi-line zoned wiring (≤ 30 devices per zone) |
where to mount smoke detectors
1, The TXC7101 fire alarm smoke detectors can be installed on the ceiling, on the wall, or below the ceiling. However, the installation method depends on local regulations. For example, some regulations allow for both wall and ceiling mounting, so the TXC7101 fire alarm smoke detectors can be installed this way. For example, see the figure below:
2, TXC7101 hard wired smoke detectors are low-voltage, 2 wired devices that feature signal terminals.
Regarding installation drawings, although the TXC7101 hard wire smoke detector cannot be precisely positioned, it is still possible to connect them together. Please refer to the wiring diagram. Actual connection and use should be based on local regulations.
DC24V:
1(+) and 2(-) from panel or module,
3(+) and 2(-) connect to next detector.
3, The coverage of a TXC7101 fire smoke detector is closely related to ground clearance:
Typically, the detection radius for installations under * meters is 9 meters, covering an area of 100 square meters.
the detection radius for installations between 6 and 12 meters is 6.7 meters, covering an area of 80 square meters.
The distance between two smoke detectors is designed according to local regulations.
Product Strength and After-Sales Service
The TXC7101 electric optical smoke detector is GB standard but not EN54 standard. This cheap fire alarm smoke detector is sold worldwide and has received widespread acclaim. The success is not only due to the product strength, but also our on-site after-sales service in over a dozen countries worldwide, ensuring the smooth running of our customers’ projects.
Asia branch company
Vietnam, Malaysia, Indonesia,Singapore
Africa partner
Kenya, South Africa, Egypt
Middle East partner
UAE, Saudi Arabia, Qatar
South America partner
Brazil, Argentina
Tanda Technology is a China-based global supply chain management company specializing in fire protection and security products. We provide a one-stop solution for overseas clients to source the most comprehensive and cutting-edge products, covering residential, commercial, and industrial applications.
All of our products are manufactured in China and come with internationally recognized certifications such as UL, FM, CE, LPCB, and CCCF, ensuring global compliance, safety, and reliability. This allows us to deliver peace of mind to clients seeking trusted, certified solutions for projects worldwide.
Our portfolio also includes specialized energy storage fire protection solutions, addressing the growing demand in renewable energy and battery energy storage systems (BESS). With UL-certified fire suppression cabinets, integrated safety systems, and advanced monitoring technologies, Tanda Technology helps safeguard critical infrastructure in the new energy era.
Our international team, with members from multiple countries, is supported by overseas service teams and strong online technical support capabilities. With global reach and local expertise, Tanda Technology is your trusted partner for innovative, certified, and cost-effective fire protection and security solutions worldwide.
Thank you for choosing Tanda Technology.
commercial smoke detector applications
The TXC7101 high sensitivity smoke detector has a wide range of applications. Besides locations prone to dust, steam, oil mist, and water fog, as well as high altitudes, it can be used in any architectural environment below 12 meters.
These include homes, basements, rented properties, warehouses, commercial buildings, garages, restaurants, hotels, office buildings, shopping malls, residential communities, entertainment venues, computer rooms, archives, and other public spaces.
We have over 1,000,000 case studies to share with you, and we look forward to hearing from you.
TXC7 Serials Conventional Fire Alarm Panels
A Conventional Fire Alarm System is powerful that not only requires a core control panel like the TXC7 conventional fire alarm panel which was designed according to EN54 standard, but also needs to be paired with other detectors, modules, and appropriate configurations based on the project’s scale to maximize its effectiveness.
